3 in 1 Digital Water Tap
One Digital Faucet, Three Filtered Water Options
The 3 in 1 digital water tap combines filtered boiling water, filtered chilled water, and filtered room-temperature water in one compact under-counter drinking-water system. Instead of installing separate faucets and appliances, the system connects one digital touch faucet to a 4.0L digital boiler tank, 2.0L chilled-water tank, and UF filtration system.
The digital faucet provides temperature control, preset water volumes, and safety functions from a single interface. Depending on the selected mode, users can dispense filtered water from 45°C to 98°C, chilled filtered water from 3°C to 8°C, or filtered room-temperature water.
For kitchen brands, water filtration companies, appliance manufacturers, plumbing distributors, hospitality suppliers, and private-label buyers, this configuration provides a practical platform for developing a branded 3 in 1 digital water tap system.
3 in 1 Digital Water Tap: Three Drinking-Water Functions
The system is built around three dedicated drinking-water functions:
| Function | Water Type | Temperature Range | Main Application |
|---|---|---|---|
| Digital hot water | Filtered heated water | 45–98°C | Tea, coffee, cooking and hot drinks |
| Digital chilled water | Filtered chilled water | 3–8°C | Drinking and food preparation |
| Filtered water | Filtered room-temperature water | Ambient | Everyday drinking |
The system combines the faucet, boiler, chiller, and filtration components under the counter, keeping the kitchen worktop visually clean.
The basic water-treatment route is:
Incoming water → UF filtration → hot/chilled/ambient drinking-water functions → digital faucet
The exact internal waterway arrangement should be confirmed against the final model configuration.

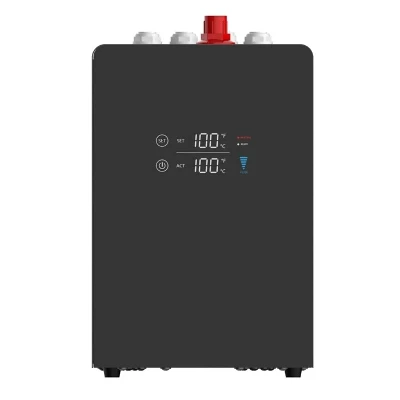

4.0L Digital Boiler Tank for 45–98°C Filtered Hot Water
The 4.0L digital boiler is the heating core of the system.
Unlike a simple kettle, it is designed to work continuously with the digital faucet and provides selectable water temperatures rather than one fixed boiling point.
14 Preset Temperature Settings
The digital boiler provides 14 preset temperature settings:
45°C / 55°C / 65°C / 75°C / 80°C / 85°C / 90°C / 91°C / 92°C / 93°C / 94°C / 95°C / 96°C / 98°C
This gives the user more control over different drinking and food-preparation applications.
For example:
Lower temperatures can be used for warm drinking water.
75–85°C settings are suitable for many tea and beverage applications.
Higher settings provide near-boiling water.
98°C is the maximum preset temperature supplied for this configuration.
4.0L Boiler Technical Specifications
| Parameter | Specification |
|---|---|
| Boiler capacity | 4.0 L |
| Dimensions | 310 × 205 × 265 mm |
| Water temperature | 45–98°C |
| Preset temperatures | 14 settings |
| Reheat temperature settings | 3 / 5 / 7 / 9°C |
| Initial heating time | Approx. 10–12 min* |
| Reheating time | Approx. 3–5 min* |
| Continuous hot-water output | Approx. 2.5 L |
| Heating element | INCO-800 |
| Water tank | SUS304 food-grade stainless steel |
| Temperature accuracy | ±0.5°C |
| Installation | Under-counter |
| Electrical connection | Standard 16A EU plug |
| System design | Non-pressure / open-vent |
| Safety components | Thermostat, sensors, dry-burn protection float |
| Control interface | PC mirror interface |
| Filter reminder | Integrated |
| Solenoid valve | Integrated |
| Expansion management | Bladder Venturi expansion system |
*Heating and reheating times depend on incoming water temperature and actual operating conditions.
Why the 4.0L Digital Boiler Matters
The tank is not simply a heating container.
Several details have been incorporated to support everyday use:
±0.5°C Temperature Control
The supplied specification gives temperature accuracy within 0.5°C. This is useful when users want repeatable temperatures rather than relying on a kettle's variable heating cycle.
SUS304 Food-Grade Water Tank
The water-contact tank is specified as SUS304 food-grade stainless steel.
The heating system also uses stainless-steel elements and sensors, while the filtration stage is positioned to help protect the boiler from incoming water impurities.
10–12 Minute Initial Heating
The supplied initial heating time is approximately 10–12 minutes, depending on inlet-water temperature.
After the initial heating cycle, the specified reheating time is approximately 3–5 minutes, again depending on incoming water conditions.
Open-Vent, Non-Pressure Design
The boiler uses a non-pressure/open-vent design with safety provisions.
This is an important specification for importers and engineering teams because the boiler architecture affects installation requirements, plumbing design, safety assessment, and certification.

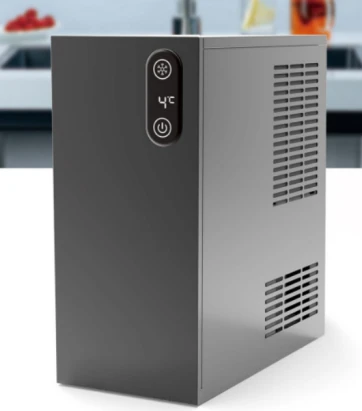

2.0L Chilled Water Tank for 3–8°C Filtered Water
The cold-water side uses a dedicated 2.0L chilled-water tank.
Instead of relying on ice or a household refrigerator, the under-counter chiller provides chilled filtered water directly through the digital faucet.
Chiller Technical Specifications
| Parameter | Specification |
|---|---|
| Chilled-water capacity | 2.0 L |
| Rated voltage | 220–240V |
| Frequency | 50Hz |
| Cooling power | 120W |
| Chilled-water temperature | 3–8°C |
| Refrigerant | R600A |
| First cooling duration | Approx. 25 min |
| Recooling time | Approx. 15 min |
| Cold-water flow rate | 1.5 L/min |
| Dynamic pressure | 45 PSI |
The actual cooling time and delivered temperature can vary with ambient temperature, inlet-water temperature, usage frequency, installation conditions, and other operating factors.
3-in-1 Digital Water Tap System
The chiller tank can be upgraded to a sparkling chiller unit; by adding a CO2 cylinder, the system transforms into a 3-in-1 sparkling water tap system.
It provides:
- Filtered Chilled Sparkling Water
- Filtered Chilled Water
- Filtered Boiled Water
UF Filtration Before Drinking-Water Dispensing
The 3 in 1 digital water tap system uses a UF filter as part of the drinking-water treatment system.
The supplied cartridge construction includes:
- Carbon fiber
- UF membrane film
- Internal check valve
- Anti-scale material
- Anti-bacterial material
The check valve is designed to help prevent unwanted water dripping after dispensing.
UF Filter Specifications
| Parameter | Specification |
|---|---|
| Filter media | Carbon fiber + UF film |
| Internal component | Check valve |
| Additional material | Anti-scale and anti-bacterial material |
| Supplied approvals | NSF and WRAS |
| Recommended replacement | Every 12 months or 5,000 L |
| Installation position | Under-counter |
| Application | Drinking-water filtration |
The 12-month or 5,000L replacement interval should be treated as the supplied recommendation and may vary according to incoming water quality and actual consumption.
For private-label projects, filter life should be validated against the final cartridge specification and target-market water conditions.

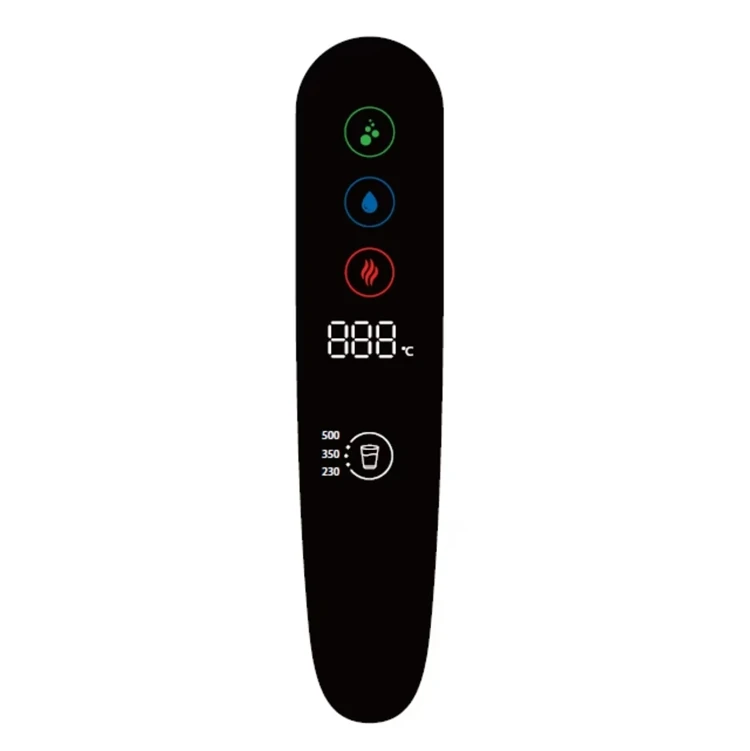

Digital Touch Control With Preset Water Volumes
The faucet uses a digital interface rather than relying only on conventional mechanical handles.
The supplied configuration includes:
- Touch controls
- Digital temperature display
- Preset water-volume control
- Three-stage water-ration function
- Boiling-water child-safety lock
This makes the faucet easier to operate when users need repeatable quantities of hot, chilled, or filtered water.
For commercial environments such as offices, hotel pantries, hospitality spaces, and kitchen projects, preset dispensing can also make daily operation more consistent.
Child-Safety Lock for 45–98°C Hot Water
Hot-water safety needs to be considered when a faucet can deliver water up to 98°C.
The system includes a child-safety lock for boiling water.
The design also uses a cooling-touch spout to help reduce the surface temperature of the faucet outlet during operation.
For residential and hospitality applications, these features should be evaluated together with the final installation, local safety requirements, and applicable product certifications.

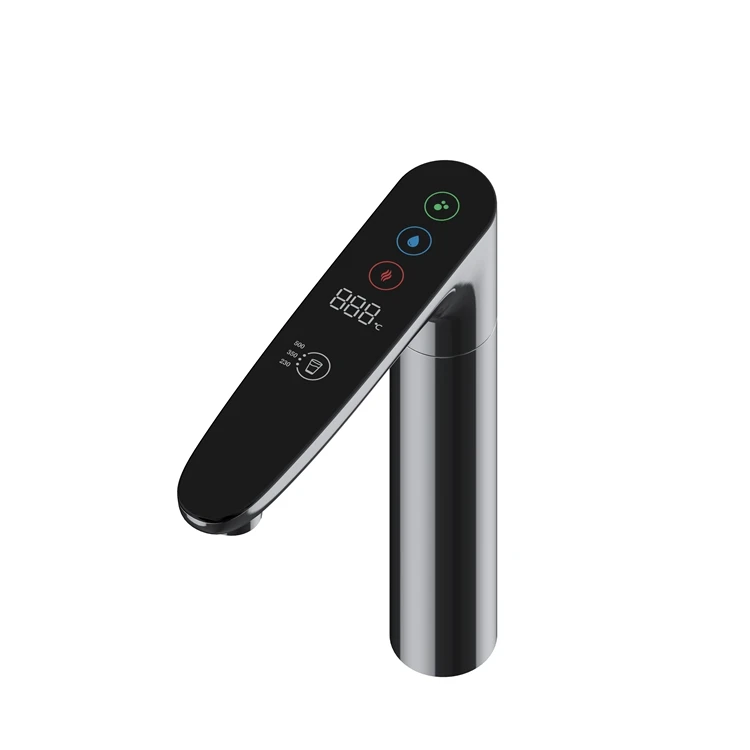

SUS304 + ABS Faucet Construction
The faucet is specified with a combination of SUS304 stainless steel and ABS components.
SUS304 is widely used in kitchen and drinking-water hardware because of its corrosion resistance and suitability for many water-contact applications.
The final material selection should always be checked against the exact water-contact components and destination-market requirements.
The supplied product information states that the materials meet requirements associated with:
NSF / CUPC / WRAS / WaterMark
Certification should be confirmed for the exact finished model and configuration before making market-specific compliance claims.

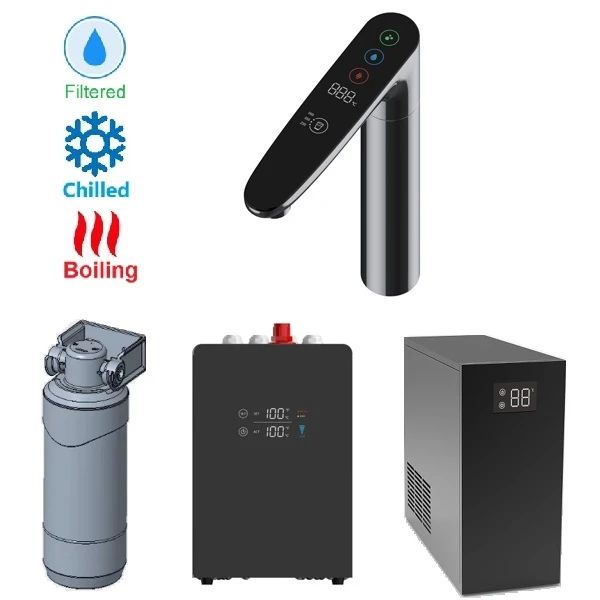

A Complete Under-Sink Drinking Water System
The 3-in-1 digital faucet is not designed as a standalone tap.
It is part of a complete system consisting of three major under-counter modules:
| System Component | Main Function |
|---|---|
| 3-in-1 digital faucet | User interface and water dispensing |
| 4.0L digital boiler | 45–98°C filtered hot water |
| 2.0L chiller | 3–8°C filtered chilled water |
| UF filter | Drinking-water filtration |
| Digital control system | Temperature and volume management |
This integrated structure allows the visible faucet to remain relatively compact while the larger functional components are installed inside the cabinet.
For kitchen manufacturers and property developers, this can simplify the visual design of the countertop while keeping the drinking-water equipment accessible below the sink.
3 in 1 Digital Water Tap for Kitchen Brands and Private Label
For an international kitchen or appliance brand, the product can be developed as more than a standard catalog faucet.
Potential OEM/ODM development areas include:
- Faucet appearance
- Surface finish
- Branding
- Digital interface
- Packaging
- Boiler configuration
- Chiller configuration
- Filter cartridge specification
- Electrical configuration
- Waterway design
- Installation accessories
- User documentation
The final customization range depends on the engineering requirements, target market, certification scope, and order volume.
This makes the platform suitable for brands looking to develop their own 3 in 1 digital water tap rather than simply reselling an off-the-shelf kitchen faucet.
Where Can a 3 in 1 Digital Water Tap Be Used?
The combination of hot, chilled, and filtered water makes this system suitable for several applications.
Residential Kitchens
One faucet provides the main filtered drinking-water functions without requiring separate countertop appliances.
Tea Bars and Beverage Areas
The adjustable 45–98°C hot-water range allows users to select different temperatures for beverages rather than relying on one fixed setting.
Hotel and Hospitality Projects
The under-counter installation keeps equipment away from the visible countertop and provides filtered hot and chilled water from one dispensing point.
Office Pantries
The 2.0L chilled tank and 4.0L hot-water tank provide dedicated drinking-water functions for shared kitchen areas.
Kitchen Furniture Manufacturers
The integrated system can be specified during cabinet design so that the required under-sink space is allowed for the boiler, chiller, filter and plumbing.
Water Filtration Companies
The product provides an opportunity to combine filtration with hot and chilled-water dispensing in a single branded system.
What International Buyers Should Check Before Ordering
For importers, distributors, plumbing companies, and private-label buyers, product selection should go beyond the faucet's appearance.
Use the following checklist before placing an order:
| Procurement Item | What to Confirm |
|---|---|
| Faucet material | SUS304 + ABS configuration |
| Hot-water range | 45–98°C |
| Hot-water tank | 4.0L |
| Chilled-water tank | 2.0L |
| Chilled-water range | 3–8°C |
| Filter | Carbon fiber + UF film |
| Filter replacement | 12 months / 5,000L |
| Boiler dimensions | 310 × 205 × 265 mm |
| Chiller power | 120W |
| Hot-water control | 14 preset temperatures |
| Safety | Child-safety lock and dry-burn protection |
| Installation | Under-counter space and plumbing connections |
| Electrical | 220–240V / 50Hz configuration supplied for chiller |
| Certifications | Confirm exact model and destination market |
| Spare parts | Filters, sensors, valves and service components |
| OEM/ODM | Branding, packaging and engineering requirements |
| Warranty | Confirm by final commercial quotation |
This information gives purchasing teams something concrete to compare when evaluating different 3 in 1 digital water tap suppliers.
Quality and Compliance for International Markets
Xiamen Smart Water Technology Co., Ltd. places product quality at the center of its manufacturing process and operates with an ISO9001 and ISO14001-based quality-management approach according to the company's supplied quality information.
The company's product portfolio includes international compliance requirements and certifications such as:
UL, CB, CE, GS, ERP, UKCA, RoHS, REACH, PAHS, SCCP, BSMI, Safety Mark, RCM, WRAS, NSF, KTW, and WaterMark.
Not every certificate applies to every product.
For an international project, the correct approach is to confirm:
The exact product model.
The final electrical configuration.
The water-contact materials.
The target country.
The required certification.
Whether the certification covers the complete system or an individual component.
This is particularly important when a 3 in 1 digital water tap is supplied as a complete faucet + boiler + chiller + filtration package.
Why Work With Xiamen Smart Water Tech?
Xiamen Smart Water Technology Co., Ltd. develops multi-function kitchen tap systems and under-sink drinking-water solutions for international markets.
The company supports commercial buyers looking for:
- 3 in 1 digital water taps
- Multi-function kitchen taps
- Boiling water tap systems
- Filtered drinking-water systems
- Chilled water taps
- Digital boiler tanks
- Under-sink water chillers
- OEM kitchen faucets
- ODM drinking-water systems
- Private-label products
The company also works with importers, distributors, kitchen brands, plumbing companies, water filtration companies, appliance brands, hospitality suppliers, property developers, kitchen manufacturers, wholesalers, and private-label buyers.
For an ODM project, the discussion can start with the intended market, water functions, electrical requirements, faucet design, filtration requirements, certification scope, and expected annual volume.
Frequently Asked Questions
What is a 3 in 1 digital water tap?
A 3 in 1 digital water tap combines filtered hot, chilled, and room-temperature water functions in one digital faucet. The supplied system connects to a 4.0L boiler, 2.0L chiller, and UF filter installed under the counter.
What temperature does the 3 in 1 digital tap provide?
The hot-water function has 14 preset temperatures from 45°C to 98°C. The chilled-water function is specified at 3–8°C.
How large is the digital boiler?
The boiler has a 4.0L capacity and measures 310 × 205 × 265 mm according to the supplied specifications.
How large is the chilled-water tank?
The integrated chilled-water tank has a 2.0L capacity and uses a 120W cooling system.
How long does the boiler take to heat?
Initial heating takes approximately 10–12 minutes, while reheating takes approximately 3–5 minutes, depending on incoming water temperature and operating conditions.
How often should the UF filter be replaced?
The supplied recommendation is every 12 months or 5,000L, whichever comes first. Actual replacement frequency can depend on incoming water quality and water consumption.
Is the faucet safe for children?
The supplied model includes a child-safety lock for boiling water. The faucet also uses a cooling-touch spout. Final safety performance should be evaluated against the exact model and applicable market requirements.
Can this 3 in 1 digital water tap be private labeled?
Yes. The system can be considered for OEM/ODM projects involving branding, faucet design, finishes, packaging, filtration, electrical configuration, and system configuration, subject to engineering review.
What certifications are available?
The supplied product information references NSF, CUPC, WRAS and WaterMark for the materials/product, while the company's broader product portfolio includes other international certifications. The exact approval must be confirmed for the final model and destination market.
Is this system suitable for commercial projects?
Yes. The combination of filtered hot and chilled water, under-counter installation, digital controls, and integrated filtration makes the platform suitable for residential, hospitality, office, kitchen, and other commercial applications, subject to project requirements.
Request A 3 In 1 Digital Water Tap OEM/ODM Quote
If you are developing a new kitchen faucet range, drinking-water appliance, filtration system, hospitality project, or private-label product, Xiamen Smart Water Technology can discuss the required configuration.
Tell us your:
- Target market
- Required water functions
- Voltage and frequency
- Faucet design or reference model
- Filtration requirements
- Certification requirements
- Estimated order quantity
Our engineering and sales team can then evaluate the appropriate 3 in 1 digital water tap system configuration for your project.
Looking for a 3 in 1 digital water tap manufacturer or ODM supplier? Contact Xiamen Smart Water Tech to discuss your project.
Xiamen Smart Water Technology Co., Ltd.
ODM Manufacturer of Under-Sink Drinking Water Systems
Website: https://www.kitchenwatertap.com
Email: allen@kitchenwatertap.com
